5.0mm Pitch 2P Brass Cage Screw Terminal Wire Connectors

Product Categories
CIXI ZHONGYI ELECTRONIC EQUIPMENT FACTORY
Contact Now

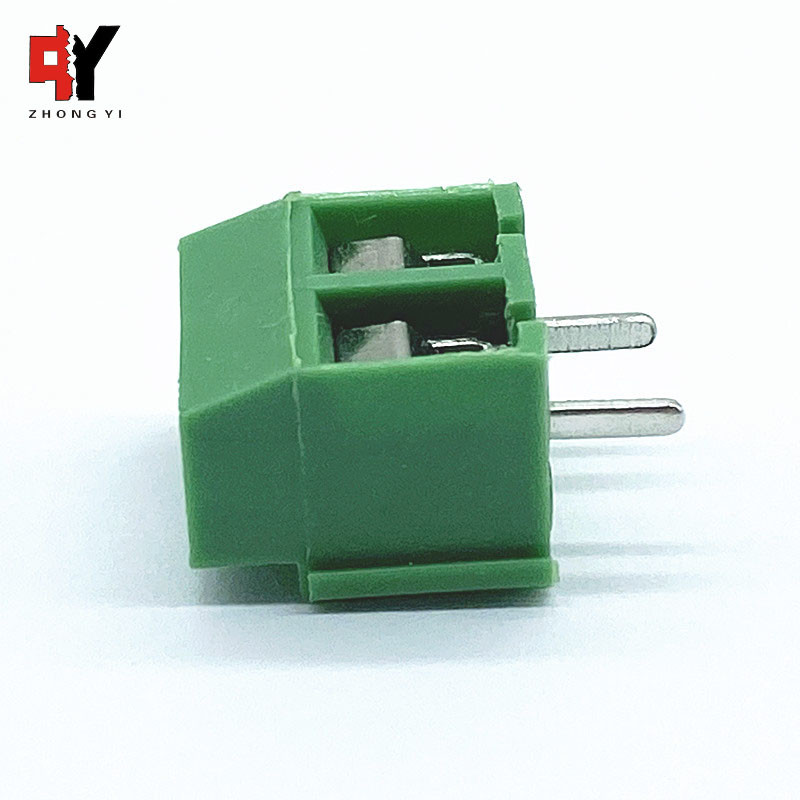

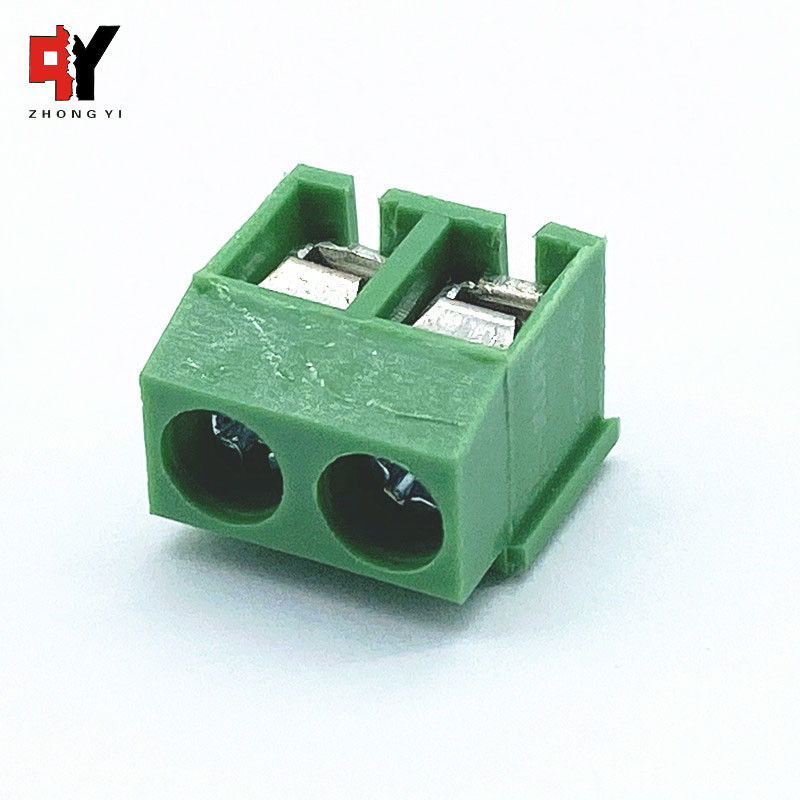

5.0mm Pitch 2P Brass Cage Screw Terminal Wire Connectors

Brand Name : ZHONGYI

Model Number : HQ126V-5.0

Place of Origin : China

MOQ : 100pcs

Price : $0.06 100~499pcs / $0.05 ＞500pcs

Payment Terms : T/T

Supply Ability : 10000pcs/day

Delivery Time : 1-3 work day

Packaging Details : 100pcs/plastic bag

Pitch : 5.0mm

Color : Green

Type : Screw

Poles : 2P

Screw : M2.5.Steel.Zinc plated

Housing : PA66.UL94V-0

Rated voltage : 300V

Rated current : 10A

Wire range : 26-14AWG

Temp range : -30℃~+120℃

Strip length : 6~7mm

Square block : Brass

Contact Now

Factory direct selling HQ126V-5.0mm Pitch 2P brass cage screw wire terminal block conection

Picth 5.0mm
Square block Brass
Screw M2.5.Steel.Zinc plated
Wire guard Phosphor bronze.Ni plated or stainless steel
Pin header Brass.Tin plated
Rated voltage 300V
Rated current 10A
Withstanding voltage AC1500/1Min
Wire range 26-14AWG
Max soldering +250℃ 5 Sec
Torque 0.4Nm(3.6Lbin)

Remarks:
The screw divided into slotted and phillips. If you have specific requirement, pls note or contact us.

Customized service:

LOGO, please send us your logo,we can put it on the product.
Packing, we accept customer's package,if you have specific requirement,please tell us.
ODM/OEM, We are manufacturer, our engineer can help design according to your requirement.
Application:
PCB terminal is widely used in almost electronic equipment, such as relay,automation equipment,car,electricity box,new energy equipment,rail traffic.

0:00
/ 0:15

5.0mm Pitch 2P Brass Cage Screw Terminal Wire Connectors5.0mm Pitch 2P Brass Cage Screw Terminal Wire Connectors
