Orange 300V 2-24 poles Plug-In Terminal Block Female Panel Mounted

Name: Orange 300V 224 poles PlugIn Terminal Block Female Panel Mounted
Brand: ZHONGYI
Price: 0.04100 USD

Orange 300V 2-24 poles Plug-In Terminal Block Female Panel Mounted Manufactures

Brand Name : ZHONGYI

Model Number : HT396K

Place of Origin : China

MOQ : 100pcs

Price : $0.04 100~499pcs/$0.03 ＞500pcs

Payment Terms : T/T

Supply Ability : 10000pcs/day

Delivery Time : 1-3 work days

Packaging Details : plastic bag

Pitch : 3.96mm

Poles : 2-24P

Screws : Brass.Tin plated

Wire guard : Phosphor bronze Ni plated

Pin header : Brass.Tin plated

Housing : PA66.UL94V-0

Rated voltage : 300V

Rated current : 15A

Withstanding voltage : AC1600V/1Min

Wire range : 28-14AWG

Temp range : -30℃~+120℃

Strip length : 7~8mm

Contact Now

Orange 300V 2-24 poles Plug-In Terminal Block Female Panel Mounted

Electric/Mechnical:

Pitch	3.96mm
Poles	2-24P
Rated voltage	300V
Rated current	15A
Withstanding voltage	AC1600V/1Min
Wire range	28-14AWG
Max soldering	+250℃ 5 Sec
Torque	0.2Nm(1.8Lbin)

Customized service:

LOGO, please send us your logo,we can put it on the product.
 Packing, we accept customer's package,if you have specific requirement,please tell us.
 ODM/OEM, We are manufacturer, our engineer can help design according to your requirement.

Application:
PCB terminal is widely used in almost electronic equipment, such as relay,automation equipment,car,electricity box,new energy equipment,rail traffic.

Orange 300V 2-24 poles Plug-In Terminal Block Female Panel Mounted

Product Tags:

2p plug-in terminal block

pa housing plug-in terminal block

2p pluggable terminal block connector

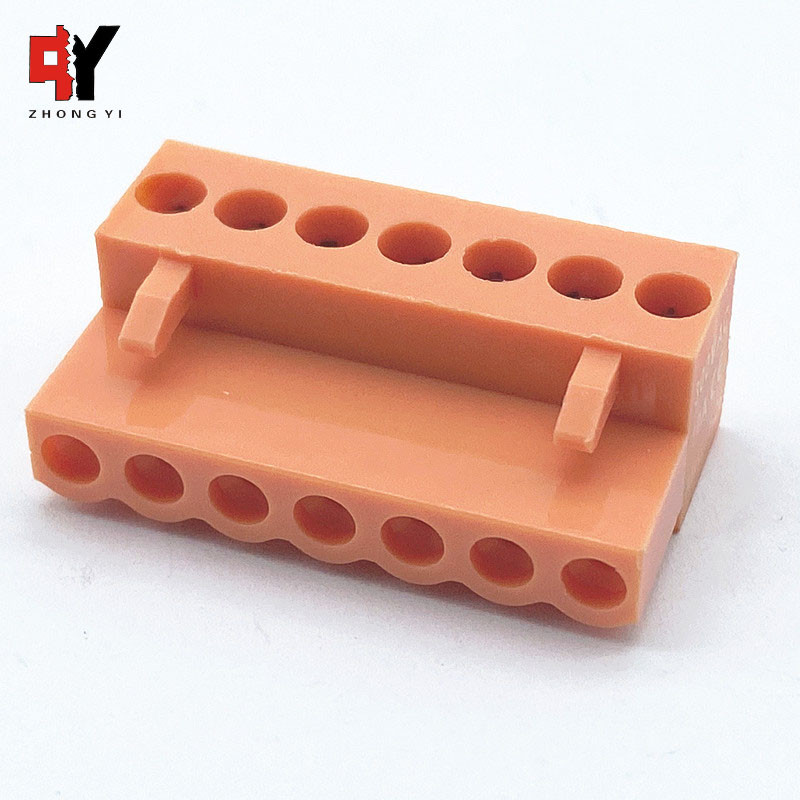

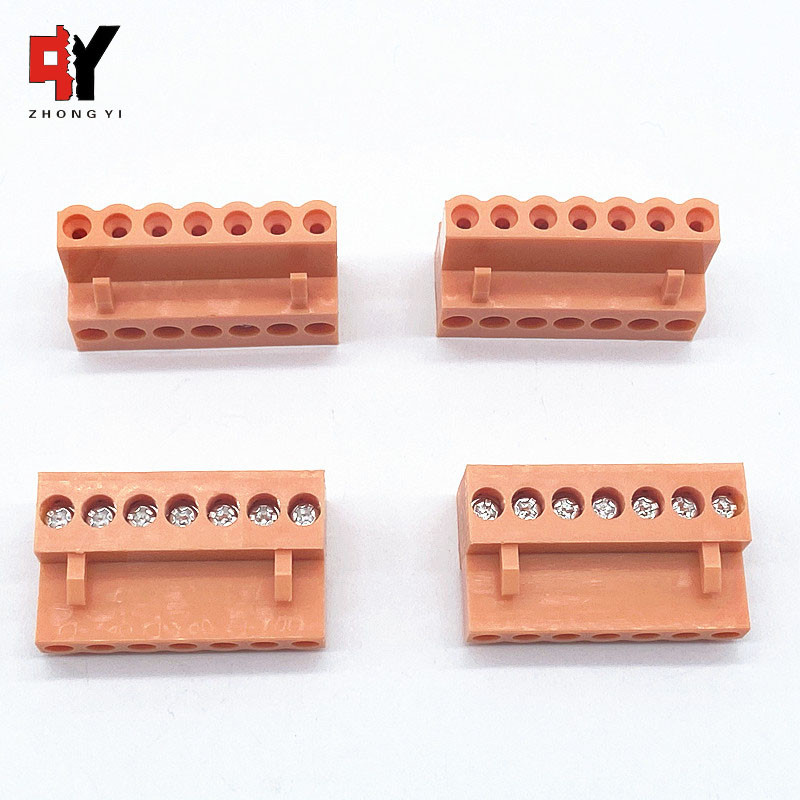

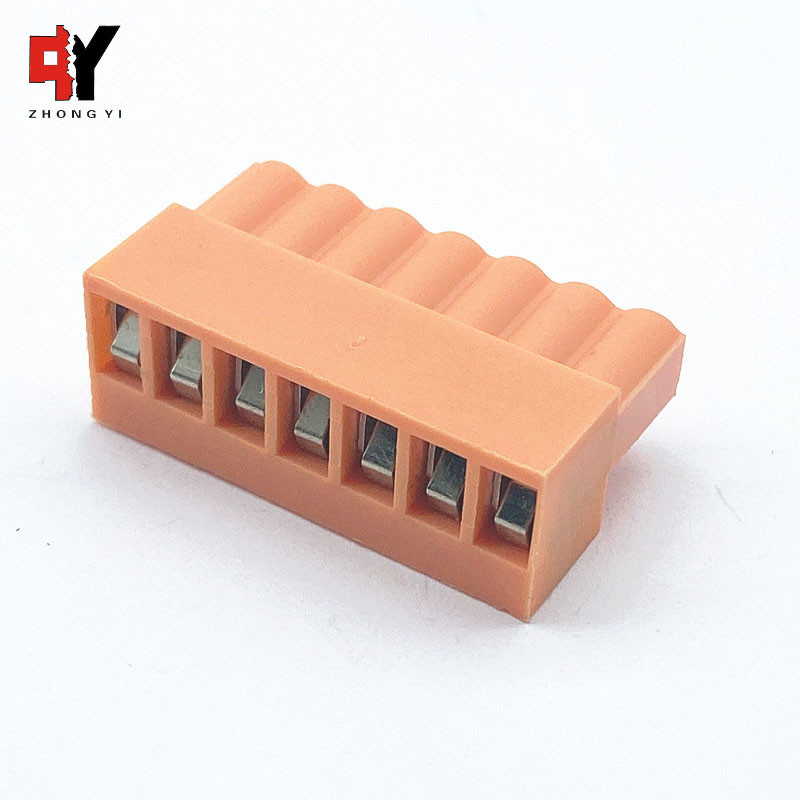

Orange 300V 2-24 poles Plug-In Terminal Block Female Panel Mounted Images
